DC-DC(Buck) DC-DC_深圳市芯创世纪电子有限公司

AP系列

DC-DC(Buck) DC-DC

降压

DC-DC(Boost) DC-DC

升压

Car Charger IC

车载充电IC

LED Backlight

LED背光驱动

Battery Charger

锂电池充电IC

Current Limiter

限流IC

Reset Detect

复位检测

High Power White LED

大功率LED驱动

- 型号
- 特点
- 效率
- 输入电压
- 功耗
- 输出电压
- 输出模式
- 精度
- 封装形式
- AP2506
- 1.5MHz,700mA Synchronous PWM
- 96%
- 2.5~6.5V
- 300μA
- 0.6~5.0V
- Adj 1.3V/1.8V
- ±2%
- SOT23-5L
- AP2506L
- 1.5MHz,700mA Power Saving Mode/PWM
- 96%
- 2.5~6.8V
- 40μA
- 0.6~5.0V
- Adj 1.2V/etc
- ±2%
- SOT23-5L

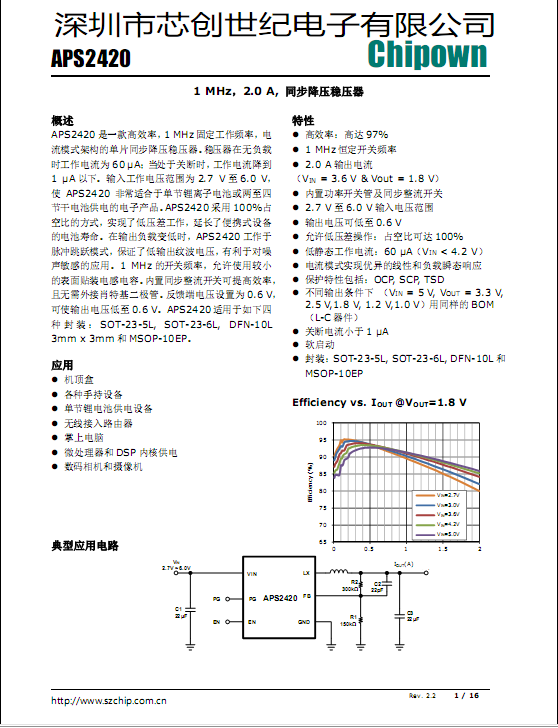

- APS2420
- 1.2MHz,2A Synchronous PWM
- 95%
- 2.5~6.0V
- 300μA
- 0.6~5.0V
- Adj
- ±2%
- DFN3*3-10 MSOP10-EP
- APS2406
- 1.5MHz,800mA Synchronous PWM
- 96%
- 2.5~6.5V
- 300μA
- 0.6~5.0V
- Adj 1.8V
- ±2%
- SOT23-5L
- APS2408
- 1.5MHz,800mA Synchronous PWM
- 96%
- 2.5~6.5V
- 300μA
- 0.6~5.0V
- Adj
- ±2%
- SOT23-5L
- APS2415
- 1.5MHz,1.5A Synchronous PWM
- 96%
- 2.5~6.5V
- 300μA
- 0.6~5.0V
- Adj
- ±2%
- SOT23-5L
- APS2420
- 1.5MHz,2A Synchronous PWM
- 97%
- 2.5～6.0V
- 60μA
- 0.6~5.0V
- Adj
- ±2%
- DFN3*3-10 MSOP10-EP SO8-EP SOT23-6L
- APS2421
- 1MHz, 2A Synchronous Step-Down Converter
- 97%
- 2.5～6.0V
- 60μA
- 0.6~5.0V
- Adj
- ±2%
- SOT23-5L SOT23-6L DFN3*3-10 MSOP10-EP

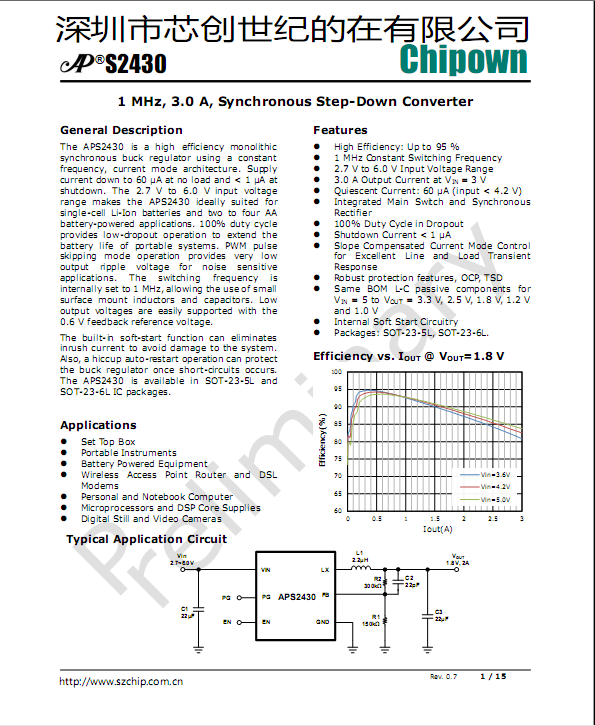

- APS2430
- 1MHz, 3A Synchronous Step-Down Converter
- 97%
- 2.5～6.0V
- 60μA
- 0.6~5.0V
- Adj
- ±2%
- SOT23-5L SOT23-6L DFN3*3-10 MSOP10-EP
- APS2431
- 1MHz, 3A Synchronous Step-Down Converter
- 97%
- 2.5～6.0V
- 60μA
- 0.6~5.0V
- Adj
- ±2%
- SOT23-5L SOT23-6L DFN3*3-10 MSOP10-EP
- AP2952
- 450KHz 2A Synchronous PWM
- 95%
- 4.75~18V
- 1.3mA
- 0.925~15V
- Adj
- ±2%
- SO8
- AP2952A
- 450KHz 2A Synchronous PWM
- 95%
- 4.75~18V
- 1.3mA
- 0.925~15V
- Adj
- ±2%
- SO8-EP
- AP2953A
- 370KHz 3A Synchronous PWM
- 95%
- 4.75~18V
- 1.3mA
- 0.925~15V
- Adj
- ±2%
- SO8-EP
- AP2972A
- 500kHz 2A Synchronous PWM
- 95%
- 4.5～16V
- 400μA
- 0.6～13V
- Adj
- ±2%
- SOT23-6L
- AP2974
- 550kHz 18V 4A Neo-SwitcherTM Synchronous Buck
- 94%
- 4.5～18V
- 500μA
- 0.6～12V
- Adj
- ±1.5%
- SOT23-6L
- AP2975
- 550kHz 18V 5A Neo-SwitcherTM Synchronous Buck
- 94%
- 4.5～18V
- 500μA
- 0.6～12V
- Adj
- ±1.5%
- SOT23-6L
- AP2978
- 500kHz 2A Synchronous PWM
- 93%
- 4.5～16V
- 400μA
- 0.6～12V
- Adj
- ±2%
- SOT23-6L
- AP2982
- 700kHz 24V 2A Neo-SwitcherTM Synchronous Buck
- 94%
- 4.5～24V
- 300μA
- 0.6～12V
- Adj
- ±2%
- SOT23-6L
- AP2983
- 600kHz 24V 3A Neo-SwitcherTM Synchronous Buck
- 94%
- 4.5～24V
- 300μA
- 0.6～12V
- Adj
- ±2%
- SOT23-6L
- AP2905
- 40V 0.7A Synchronous PWM with 100kHz~550kHz
- 95%
- 4.5～40V
- 1mA
- 0.6～24V
- Adj/5V
- ±2%
- SOT23-5L
- AP2910
- 1.2MHz,1.2A Synchronous PWM
- 94%
- 4.5-35V
- 300μA
- 0.6～24V
- Adj
- ±2%
- SOT23-6L
